HSK A63WH-SLSNR/L-TANG :  Tools for 45° mounting, with HSK taper shanks for LNMX-HT tangentially, screw clamped inserts. Recommended for heavy-duty, high metal removal rate applications. Can be used on turn-mill machines.
 Complies with the ICTM and HSK-T standards.

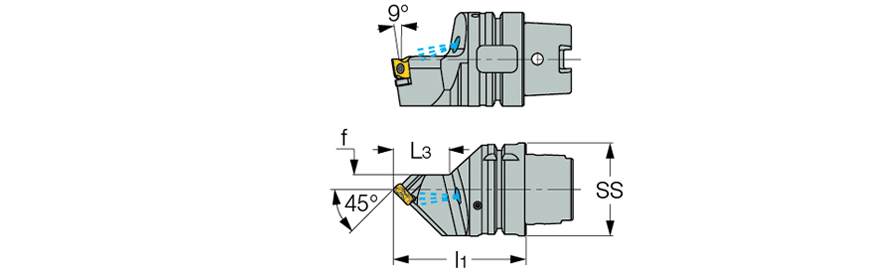

Right-hand shown

Ext. tangential 93° approach HSK SLSNR/L-TANG COOLANT
  Designation
SS
l1
f
L3
R/L
  HSK A63WH-SLSNL-G11 TANG  63  3.543  .39  1.496  L
  HSK A63WH-SLSNR-G15 TANG  63  3.543  .39  1.496  R

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, Click on "More Info".
