IM-SLANR/L-TANG :  Holders with ISO 26622-1 tapered shanks for LNMX-HT tangentially, screw clamped inserts. Recommended for heavy-duty, high metal removal rate applications.

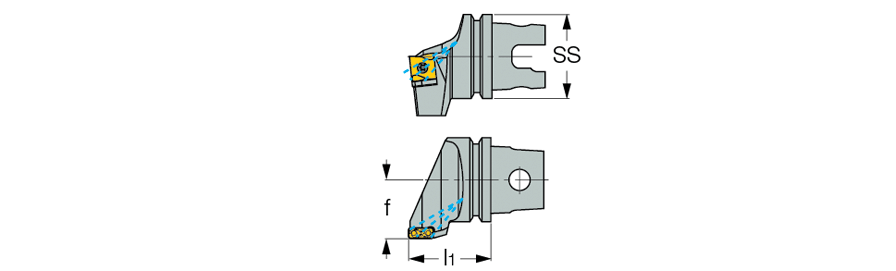

 Right-hand shown

Ext. tangential 93° approach ISO 26622-1 (IM) SLANR/L-TANG COOLANT
  Designation
SS
l1
f
Ga°
Gr°
R/L
  IM40 SLANL-11 TANG  40  1.575  1.06  -6  -6  L
  IM50 SLANL-11 TANG  50  1.969  1.38  -6  -6  L
  IM50 SLANR-11 TANG  50  1.969  1.38  -6  -6  R
  IM50 SLANL-15 TANG  50  1.969  1.38  -6  -6  L
  IM50 SLANR-15 TANG  50  1.969  1.38  -6  -6  R
  IM63 SLANL-15 TANG  63  2.362  1.69  -6  -6  L

Tools with orientation holes in the flange groove can be supplied on request
ap max for facing: LNMX 11-.11", LNMX 15-.15"
