HSK A63WH-SLANR-TANG :  Holders with HSK taper shanks for LNMX-HT tangentially, screw clamped inserts. Recommended for heavy-duty applications. Can be used on turn-mill machines.
 Complies with the ICTM and HSK-T standards.

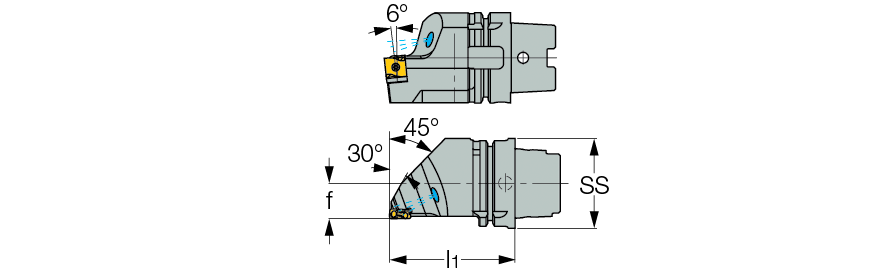

Right-hand shown

Ext. tangential 93° approach HSK COOLANT
  Designation
SS
l1
f
R/L
  HSK A63WH-SLANR-G15 TANG  63  90.00  25.0  R

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
ap max for facing 3.8mm.
For shank dimensions ,Click on "More Info".
