E-GEHIR / E-GHIR :  Interchangeable heads for internal grooving and turning. Used on a solid carbide shank. Using GEMI and GEPI inserts in widths larger than .075".

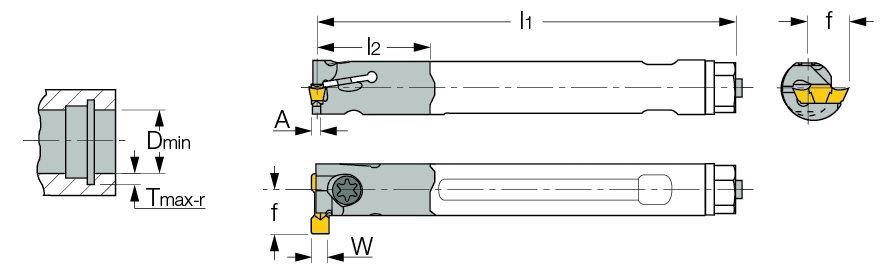

 Right-hand shown

Int. Groov & Turn Int. Grooving Int. grooving (side limit) Int. Profiling Threading (Int.) COOLANT
  Designation W
min		 W
max		 D
min
Tmax-r
l1
l2
f
A
  E12 GEHIR 16-1  .059  .075  .630  .087  6.850  .827  .35  .047
  E12 GEHIR 16-2  .075  .094  .630  .087  6.850  .827  .35  .063
  E12 GEHIR 16-3  .094  .118  .630  .087  6.850  .827  .35  .079
  E16 GHIR 25-3  .094  .118  .984  .157  8.228  1.130  .50  .079

Left-hand heads on request
The shank assembly is the same for right- and left-hand heads
