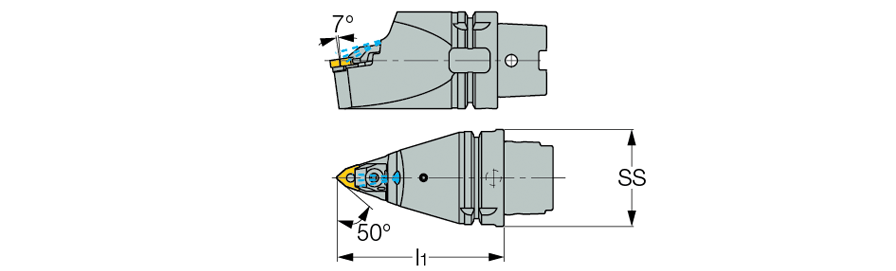

HSK A63WH-MUMNN-MW :  MULTI-WEDGE lock holder for negative, 80° rhombic, trigon and square inserts with an HSK A63WH adaptation for turn-mill machines.
 Complies with the ICTM and HSK-T standards.

Ext. 80° diamond 95° approach Ext. 80° trigon 95 approach Ext. 90° square 75° approach HSK MUMNN-MW COOLANT
  Designation
SS
l1
Insert
  HSK A63WH-MUMNN-J12MW  63  110.00  W/C/SNMG 1204

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, Click on "More Info".
