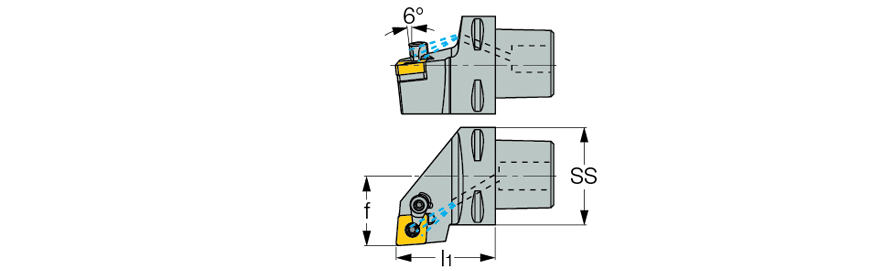

C#-MCLNR/L :  95° lead angle toolholders, for negative 80° inserts with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks.
 Right-hand shown

Ext. 80° diamond 95° approach ISO 26623-1 (CAMFIX) COOLANT
  Designation
SS
f
l1
R/L
  C6 MCLNL-45065-19  63  45.0  65.00  L
  C6 MCLNR-45065-19  63  45.0  65.00  R
