IM-PTGNR/L :  91° lead angle lever lock toolholders, for negative triangular inserts with ISO 26622-1 tapered shank.

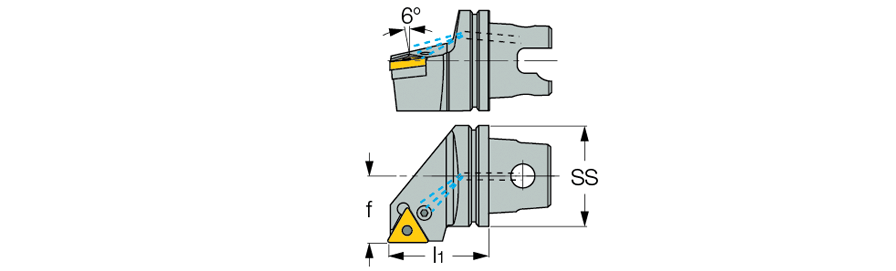

 Right-hand shown

Ext. 60° triangle 91° approach ISO 26622-1 (IM) COOLANT
  Designation
SS
f
l1
R/L
  IM40 PTGNL-16  40  27.0  40.00  L
  IM40 PTGNR-16  40  27.0  40.00  R
  IM50 PTGNL-16  50  35.0  50.00  L
  IM50 PTGNR-16  50  35.0  50.00  R

Tools with orientation holes in the flange groove can be supplied on request
