FDN-CALN15 :  Full slot, adjustable slotting cutters with cartridges using LNMT 1506PNTN-HT inserts, 18.9-25.6 mm width range. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly.


Bottom Shouldering Facing Shouldering Side slotting Slotting

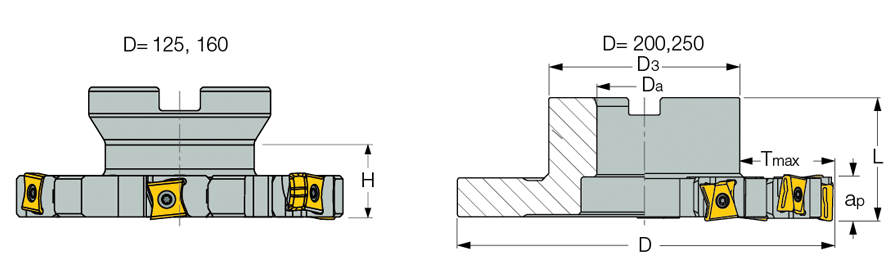

  Designation ap
minThe cutter will be set to the minimum of the width range, unless a specific width will be requested by the user.		 ap
max
Tmax
D
Da
Z
Zeff
D3
L
Kg
  FDN D125-1925-32R-CALN15  18.90  25.60  30.00  125.00  32.00  8  4  65.00  40.00  1.42
  FDN D160-1925-40R-CALN15  18.90  25.60  40.00  160.00  40.00  10  5  80.00  50.00  2.60
  FDN D200-1925-40R-CALN15  18.90  25.60  54.00  200.00  40.00  14  7  92.00  50.00  0.39
  FDN D250-1925-60R-CALN15  18.90  25.60  59.00  250.00  60.00  16  8  132.00  50.00  6.58

Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly.
For adaptation click on "More Info"
