HSK E-MB :  MB Modular Connection System with DIN 69893 E Taper Shank

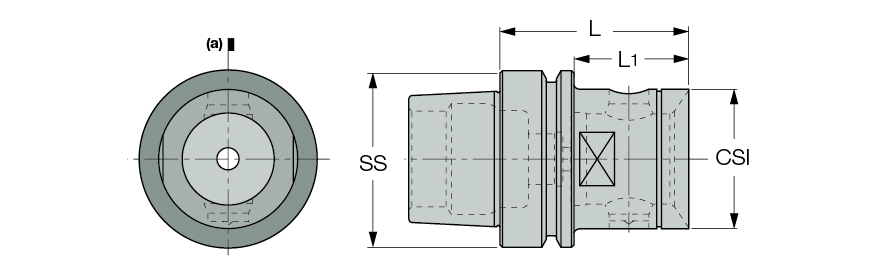

 (a)Cutting edge position

COOLANT
  Designation
SS
CSI
L1
L
Kg
  HSK E 40 MB32  40  MB32  22.0  42.00  0.30
  HSK E 50 MB50  50  MB50  -  66.00  0.71
  HSK E 63 MB50  63  MB50  40.0  66.00  0.19

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
