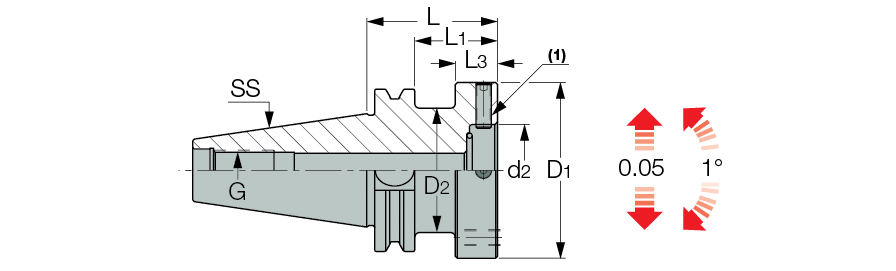

ADJ DIN69871 :  Center alignment shank and base with a DIN 69871 Form AD Taper Shank. (Used for specially tailored tool holders).


TAPER HARDNESS 58-60 SURFACE FINISH N5
  Designation
SS
d2
L
L1
L3
D1
D2
G
Kg
  ADJ DIN69871 40 D70  40  35.00  50.00  30.9  15.00  70.0  46.00  M16  1.28
  ADJ DIN69871 50 D70  50  35.00  50.00  30.9  -  70.0  -  M24  3.32

(1) Use 4 mm hex key for screw adjustment.
