C#-SLSNR/L-TANG :  Tools for 45° mounting, with CAMFIX (ISO 26623-1 standard) taper shanks for LNMX-HT tangentially, screw clamped inserts. Recommended for heavy-duty, high metal removal rate applications. Can be used on turn-mill machines.

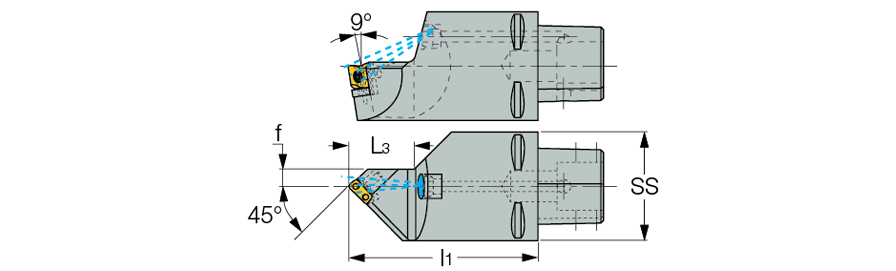

 Right-hand shown

Ext. tangential 93° approach ISO 26623-1 (CAMFIX) SLSNR/L-TANG COOLANT
  Designation
SS
l1
f
R/L
L3
  C6 SLSNR 00110-15 TANG  63  4.331  .39  R  1.496
  C6 SLSNL 00110-22 TANG  63  4.331  .47  L  1.496
  C6 SLSNR 00110-22 TANG  63  4.331  .47  R  1.496
