MM EBA :  2 flute high precision, MULTI-MASTER interchangeable solid carbide ballnose heads for machining aluminum.
 Aluminum

Profiling

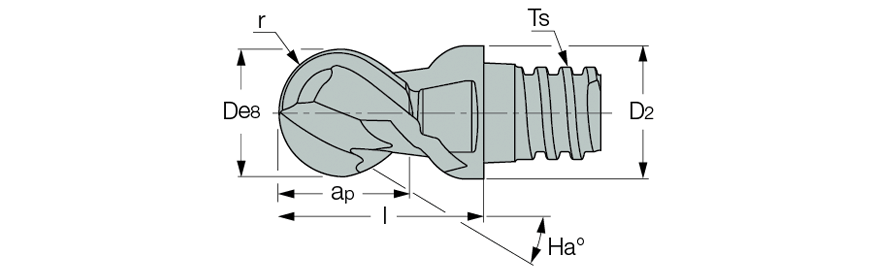

  Designation
D
Flute
ap
r
r±toler
Ts
D2
l
Ha°
  Grade
  MM EBA080B05-2T05  8.00  2  5.00  3.98  0.010  T05  7.70  10.00  45.0 IC08
  MM EBA100B07-2T06  10.00  2  7.00  4.98  0.010  T06  9.60  13.00  45.0 IC08
  MM EBA120B09-2T08  12.00  2  9.00  5.98  0.012  T08  11.50  16.50  45.0 IC08
  MM EBA.500B37-2T08  12.70  2  9.50  6.35  0.012  T08  12.40  16.50  45.0 IC08
  MM EBA160B12-2T10  16.00  2  12.00  7.98  0.012  T10  15.30  20.50  45.0 IC08
  MM EBA200B15-2T12  20.00  2  15.00  9.97  0.012  T12  18.30  25.50  45.0 IC08
  MM EBA250B22-2T15  25.00  2  22.00  12.50  0.012  T15  23.90  37.00  45.0 IC08

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
