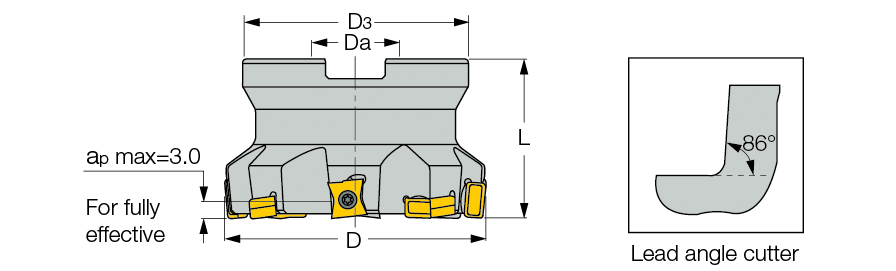

F86LNX-15 :  86° face mills using all 8 cutting edges of LN..1506... tangentially clamped inserts.


Facing Shouldering
  Designation
D
Z
L
Da
ArborFor adaptation click on More Info
  F86LNX D063-04-22-R-N15  63.00  4  40.00  22.00  A
  F86LNX D080-06-27-R-N15  80.00  6  50.00  27.00  B
  F86LNX D080-08-25.4-R-N15  80.00  8  50.00  25.40  B
  F86LNX D100-08-3175-R-N15  100.00  8  50.00  31.75  B
  F86LNX D100-08-32-R-N15  100.00  8  50.00  32.00  B
  F86LNX D100-10-3175-R-N15  100.00  10  50.00  31.75  B
  F86LNX D100-10-32-R-N15  100.00  10  50.00  32.00  B
  F86LNX D125-10-38.1-R-N15  125.00  10  63.00  38.10  B
  F86LNX D125-10-40-R-N15  125.00  10  63.00  40.00  B
  F86LNX D125-14-40-R-N15  125.00  14  63.00  40.00  B
  F86LNX D160-12-50.8-R-N15  160.00  12  63.00  50.80  B
  F86LNX D160-16-40-R-N15  160.00  16  63.00  40.00  C

For ap>3.0 mm zeff is half the number indicated in the table.
The F86LNX cutters enable using all 8 cutting edges of the LNKX/LNMT 1506.. inserts- 4 R.H. in the peripheral position and 4 L.H. in the frontal position.
