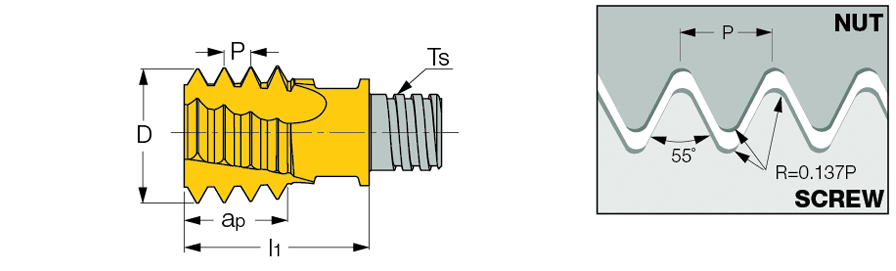

MT-W-MM :  Carbide milling heads with a threaded (MULTI-MASTER) connection, for internal and external 55° BSW thread profile.
 Application: General engineering fittings and pipe couplings

External thread milling Internal thread milling
  Designation
TPI
BSP
D
Flute
ap
l1
Ts
  Grade
  MT 10D6 19W-MMT05  19.0  G1/4-3/8  10.00  4  5.30  13.35  T05 IC908
  MT 16D12 14W-MMT08  14.0  G1/2-7/8  16.00  4  12.70  20.85  T08 IC908
  MT 16D11 11W-MMT08  11.0  G>=1  16.00  4  11.60  20.85  T08 IC908

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info"
Do not apply lubricant to the threaded connection
