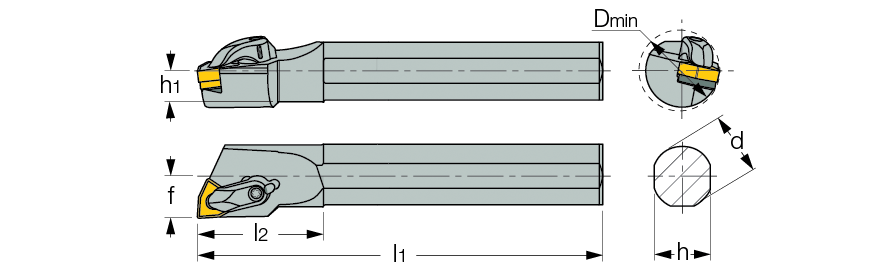

S-DWLNR/L :  R-clamp boring bars for negative trigon inserts.
 Right-hand shown

Int. 80° trigon 95° approach
  Designation
d
l1
l2
h
h1
f		 D
min
Ga°
Gr°
  S25T DWLNL-08  25.00  300.00  50.0  23.0  12.3  17.0  32.00  -6  -11
  S25T DWLNR-08  25.00  300.00  50.0  23.0  12.3  17.0  32.00  -6  -11
  S32U DWLNL-08  32.00  350.00  55.0  29.0  15.8  22.0  40.00  -6  -10
  S32U DWLNR-08  32.00  350.00  55.0  29.0  15.8  22.0  40.00  -6  -10
  S40V DWLNL-08  40.00  400.00  55.0  36.0  19.8  27.0  60.00  -6  -10
  S40V DWLNR-08  40.00  400.00  55.0  36.0  19.8  27.0  60.00  -6  -10
