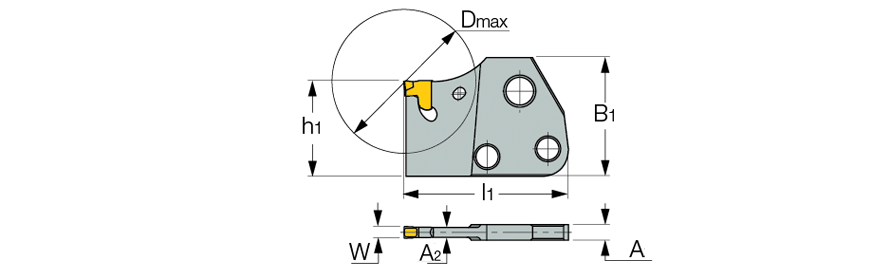

TGAD :  Parting and grooving adapters for TANG-GRIP tangentially clamped inserts.


Ext. Grooving Parting
  Designation W
min		 W
max
A
A2
l1		 D
max
h1
B1
  TGAD 1.4N  1.40  1.40  3.20  1.1  41.50  32.0  24.0  29.0
  TGAD 2N  1.80  2.40  3.20  1.7  41.50  32.0  24.0  30.0
  TGAD 3N  2.80  3.50  4.00  2.4  41.50  35.0  24.0  30.0
  TGAD 4N  3.70  4.50  3.20  3.2  50.50  50.0  24.0  30.0
  TGAD 5N  4.70  5.50  4.00  4.0  50.50  50.0  24.0  30.0
