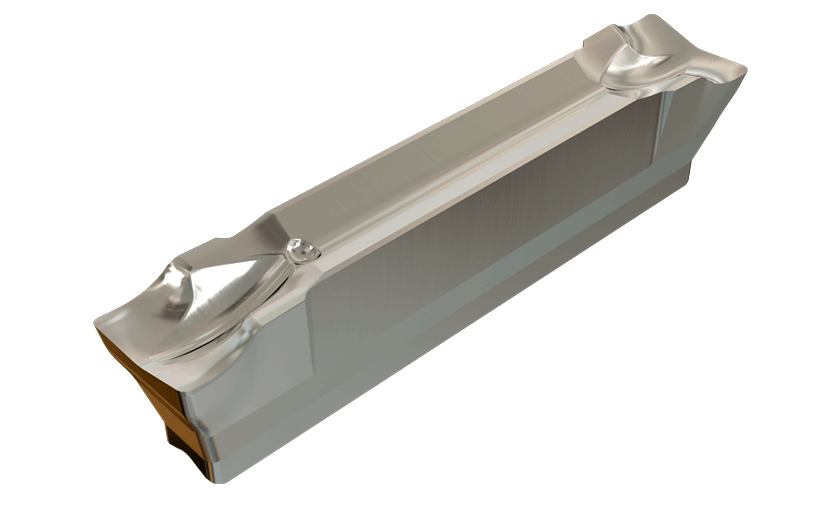

HGR/L-J/JS :  First choice for soft materials, parting of tubes, small diameters and thin-walled parts. For low carbon, alloy and austenitic stainless steel. Low-to medium feeds. JS - sharp corner. Used when grooving depth exceeds 18 mm.


Parting
  Designation
W
R
l		 fg
(min)		 fg
(max)
fa°
  Grade
  HGL 3000JS-15D  3.00  0.02  15.20  0.03  0.07  15.0 IC328
  HGR 3000JS-15D  3.00  0.02  15.20  0.03  0.07  15.0 IC328
  HGL 3002J -6D  3.00  0.20  15.70  0.04  0.12  6.0 IC328
  HGR 3002J-6D  3.00  0.20  15.70  0.04  0.12  6.0 IC328 IC830 IC354

No depth limit
