ISD-E0 :  Deep single tube drills with external single thread connection and a brazed single tip. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
 NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head

DEEPDRILL Drilling COOLANT

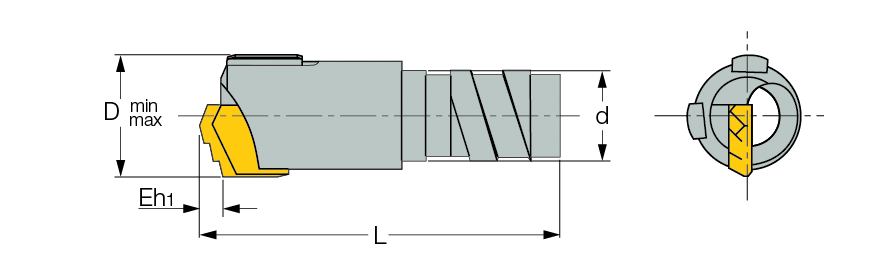

  Designation D
min
D
max

L

d

Eh1

TsTube designation
  ISD-E0 .315-.353 NOM 0  .315  .353  1.378  .236  .08  TS001
  ISD-E0 .315-.353 NOM 2  .315  .353  1.378  .236  .08  TS001
  ISD-E0 .354-.393 NOM 0  .354  .393  1.378  .283  .08  TS002
  ISD-E0 .354-.393 NOM 2  .354  .393  1.378  .283  .08  TS002
  ISD-E0 .394-.432 NOM 0  .394  .432  1.386  .299  .09  TS003
  ISD-E0 .394-.432 NOM 2  .394  .432  1.386  .299  .09  TS003
  ISD-E0 .433-.472 NOM 0  .433  .472  1.386  .339  .09  TS004
  ISD-E0 .433-.472 NOM 2  .433  .472  1.386  .339  .09  TS004
  ISD-E0 .473-.531 NOM 0  .473  .531  1.390  .358  .09  TS005
  ISD-E0 .473-.531 NOM 2  .473  .531  1.390  .358  .09  TS005
  ISD-E0 .532-.582 NOM 0  .532  .582  1.394  .425  .09  TS006
  ISD-E0 .532-.582 NOM 2  .532  .582  1.394  .425  .09  TS006

The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel M-Stainless Steel K-Cast Iron.
For quotation form and user guide click on "More Info".
