F90SD-16 :  HELIQUAD, 90° face mills using SDMT 1606... inserts.


Facing Shouldering Slotting

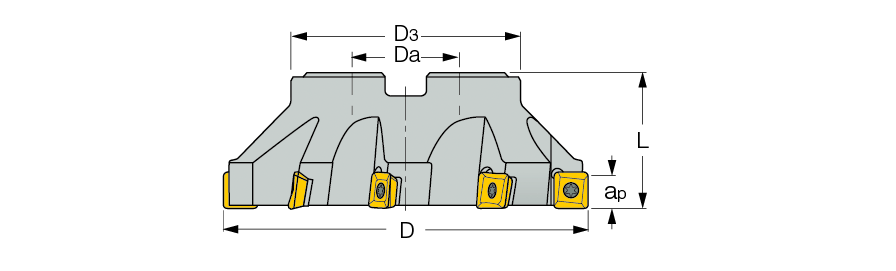

  Designation
D
Z
L
Da
ArborFor adaptation click on More Info
ap
Kg
  F90SD D160-40-CP16  160.00  7  63.00  40.00  C  15.30  3.25
  F90SD D160-40-16  160.00  10  63.00  40.00  C  15.30  3.62
  F90SD D200-60-CP16  200.00  9  63.00  60.00  C  15.30  5.05
  F90SD D200-60-16  200.00  12  63.00  60.00  C  15.30  5.34
  F90SD D315-60-CP16  315.00  14  80.00  60.00  D  15.30  20.35
