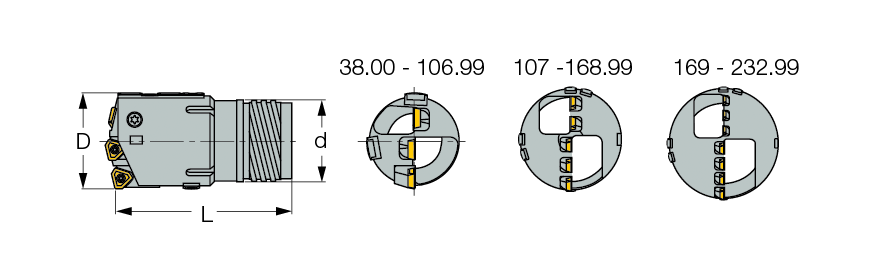

DSD-EC :  Deep single tube drills with external 4 start thread connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.


DEEPDRILL Drilling COOLANT
  Designation D
min		 D
max
L
d
TsTube designation
  DSD-EC 29.00-31.00  29.00  31.00  69.00  23.50  TS-I8
  DSD-EC 31.01-33.30  30.01  33.30  69.00  25.50  TS-I9
  DSD-EC 33.31-36.20  33.31  36.20  69.00  28.00  TS-I10
  DSD-EC 36.21-37.99  36.21  37.99  75.00  30.00  TS-I11
  DSD-EC 38.00-39.60  38.00  36.90  85.00  30.00  TS-I11
  DSD-EC 39.61-43.00  39.61  43.00  85.00  33.00  TS-I12
  DSD-EC 43.01-47.00  43.01  47.00  95.00  36.00  TS-I13
  DSD-EC 47.01-51.70  47.01  51.70  95.00  39.00  TS-I14
  DSD-EC 51.71-56.20  51.71  56.20  100.00  43.00  TS-I15
  DSD-EC 56.21-60.60  56.21  60.60  110.00  47.00  TS-I16
  DSD-EC 60.61-65.00  60.61  65.00  110.00  51.00  TS-I17
  DSD-EC 65.00-66.99  65.00  66.99  150.00  52.00  TS-I18
  DSD-EC 67.00-72.99  67.00  72.99  150.00  58.00  TS-I19
  DSD-EC 73.00-79.99  73.00  79.99  150.00  63.00  TS-I20
  DSD-EC 80.00-86.99  80.00  86.99  180.00  70.00  TS-I21
  DSD-EC 87.00-99.99  87.00  99.99  180.00  77.00  TS-I22
  DSD-EC 100.00-106.99  100.00  106.99  180.00  89.00  TS-I23
  DSD-EC 107.00-111.99  107.00  111.99  180.00  89.00  TS-I23
  DSD-EC 112.00-123.99  112.00  123.99  205.00  101.00  TS-I24
  DSD-EC 124.00-135.99  124.00  135.99  205.00  113.00  TS-I25
  DSD-EC 136.00-147.99  136.00  147.99  205.00  125.00  TS-I26
  DSD-EC 148.00-159.99  148.00  159.99  225.00  137.00  TS-I27
  DSD-EC 160.00-168.99  160.00  168.99  225.00  149.00  TS-I28
  DSD-EC 169.00-171.99  169.00  171.99  230.00  149.00  TS-I28
  DSD-EC 172.00-183.99  172.00  183.99  230.00  161.00  TS-I29
  DSD-EC 184.00-195.99  184.00  195.99  250.00  173.00  TS-I30
  DSD-EC 196.00-207.99  196.00  207.99  250.00  185.00  TS-I31
  DSD-EC 208.00-219.99  208.00  219.99  250.00  197.00  TS-I32
  DSD-EC 220.00-231.99  220.00  231.99  270.00  208.00  TS-I33
  DSD-EC 232.00-232.99  232.00  232.99  270.00  220.00  TS-I34

Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on "More Info"
For quotation form and user guide click on "More Info".
