DSD-IA :  Deep Single Tube Drills with Internal single start Thread, Adjustable Diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.


DEEPDRILL Drilling COOLANT

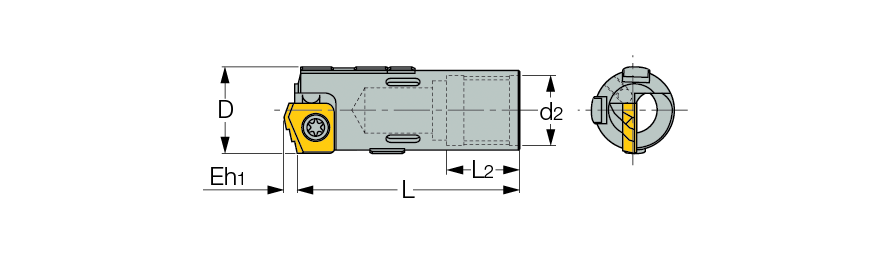

  Designation D
min		 D
max
L
L2
d2
Eh1
TsTube designation
  DSD-IA 16.01-16.50  16.01  16.50  52.00  22.80  12.70  3.1  TS-O3
  DSD-IA 16.51-17.25  16.51  17.25  52.00  22.80  13.40  3.1  TS-O4
  DSD-IA 17.26-18.00  17.26  18.00  52.00  22.80  13.70  3.1  TS-O5
  DSD-IA 18.01-19.00  18.01  19.00  52.00  22.80  14.40  3.3  TS-O6
  DSD-IA 19.01-19.99  19.01  19.99  52.00  22.80  15.40  3.3  TS-O7
  DSD-IA 20.00-21.99  20.00  21.99  55.00  25.00  16.50  3.3  TS-O8
  DSD-IA 22.00-24.99  22.00  24.99  55.00  25.00  19.00  3.6  TS-O9
  DSD-IA 25.00-26.99  25.00  26.99  60.00  25.00  20.00  3.8  TS-O10
  DSD-IA 27.00-28.50  27.00  28.50  60.00  25.00  22.00  3.8  TS-O11

For quotation form and user guide click on "More Info".
