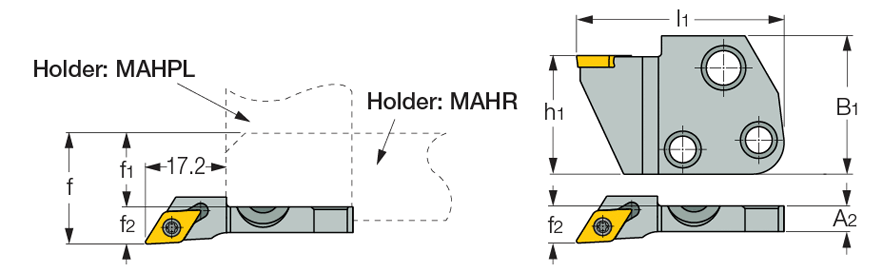

SDJCR-PAD :  Screw lock adapter for 55° diamond inserts with 7° clearance angle.

 f=f1(shank)+f2 (adapter)
Ext. 55° diamond 93° approach
  Designation
h1
B1
l1
f2
A2
Ga°
Gr°
  SDJCR-07-PAD  24.0  28.0  42.00  7.50  5.2  0  0
