| ADJ HYDRO : Radial and angular adjustable hydraulic flanges. |
|
|
|
|
|

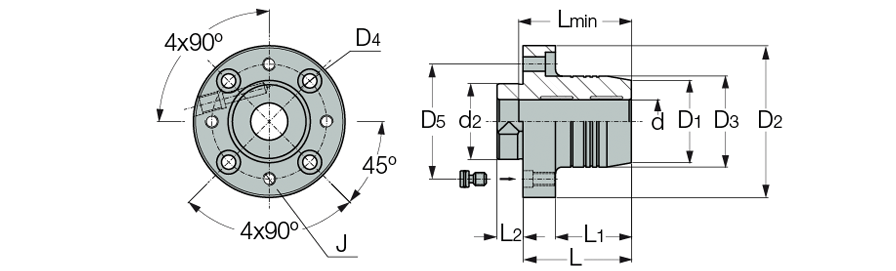

| Designation |
d2 |
D1 |
D3 |
D2 |
L |
L1 |
L
min |
d |
L2 |
D5 |
D4 |
J |
|
ADJ HYDRO 20 D70
|
35.00 |
38.0 |
42.00 |
70.00 |
50.00 |
35.0 |
52.0 |
20.00 |
10.00 |
53.00 |
11.00 |
M6 |
|
Chucking forces will be reduced by 25% if reduction sleeves are used.
Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately).
|
 |
    |
