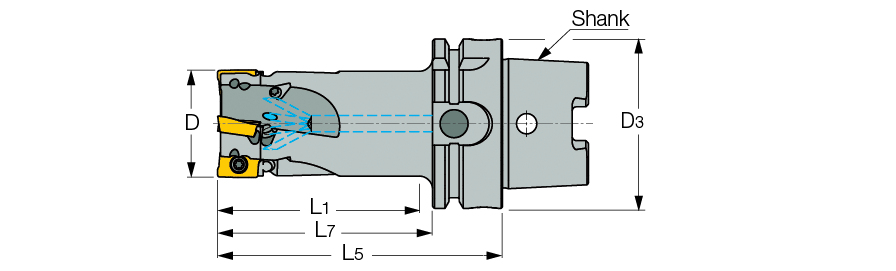

E90AD-HSK63-S :  Adjustable Endmills (used mainly for PCD/CBN inserts). The adjustable tools provide excellent surface finish and prolong insert life.


HSK Shouldering Facing COOLANT
  Designation
D
L1
L5
L7
Z
Shank		 RPM
max
Kg
  E90AD D25-2-L050-HSK63-S  25.00  45.0  76.00  50.00  2  HSK A 63  41900  0.89
  E90AD D32-3-L065-HSK63-S  32.00  60.0  91.00  65.00  3  HSK A 63  28900  1.06
  E90AD D40-4-L080-HSK63-S  40.00  75.0  106.00  80.00  4  HSK A 63  25800  1.21
  E90AD D50-4-L100-HSK63-S  50.00  96.5  106.00  106.00  4  HSK A 63  23000  1.92

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
