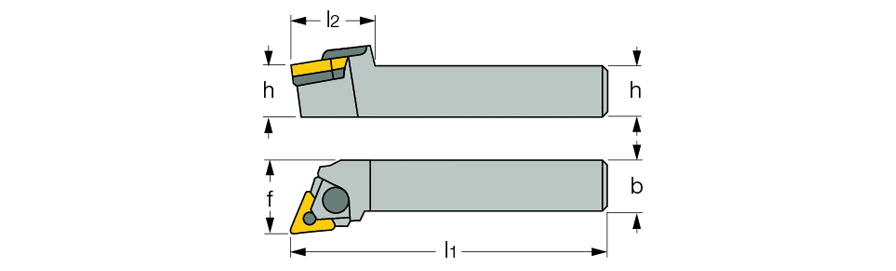

MTJNR/L-W :
93° lead angle wedge lock turning tools for negative triangular inserts.
Right-hand shown
Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
MTJNL 1616H-16W-M
16.0
16.0
100.00
32.0
20.0
-6
-6
L
MTJNR 1616H-16W-M
16.0
16.0
100.00
32.0
20.0
-6
-6
R
MTJNL 2020K-16W-M
20.0
20.0
125.00
32.0
25.0
-6
-6
L
MTJNR 2020K-16W-M
20.0
20.0
125.00
32.0
25.0
-6
-6
R
MTJNL 2525M-16W-M
25.0
25.0
150.00
32.0
32.0
-6
-6
L
MTJNR 2525M-16W-M
25.0
25.0
150.00
32.0
32.0
-6
-6
R
MTJNL 2525M-22W
25.0
25.0
150.00
38.0
32.0
-6
-6
L
MTJNR 2525M-22W
25.0
25.0
150.00
38.0
32.0
-6
-6
R
MTJNL 3225P-22W
32.0
25.0
170.00
38.0
32.0
-6
-6
L
MTJNR 3225P-22W
32.0
25.0
170.00
38.0
32.0
-6
-6
R
