C#-PWLNR/L-X :  Lever lock toolholders for HELITURN LD negative, trigon inserts with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.

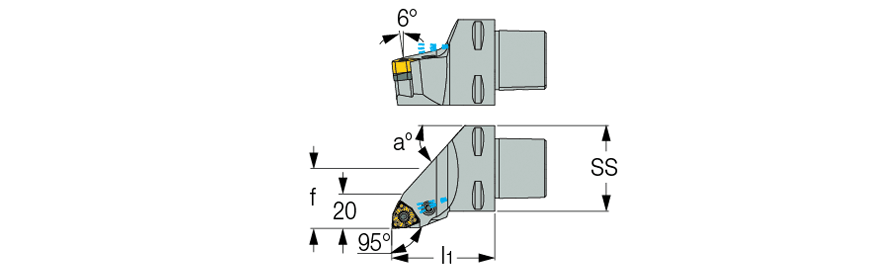

 Right-hand shown

Ext. 80° trigon 95 approach ISO 26623-1 (CAMFIX) COOLANT
  Designation
SS
f
l1
a°
R/L
  C4 PWLNL-27050-06X  40  27.0  50.00  45  L
  C4 PWLNR-27050-06X  40  27.0  50.00  45  R
  C5 PWLNL-25060-06X  50  25.0  60.00  48  L
  C4 PWLNL-27050-08X  40  27.0  50.00  45  L
  C4 PWLNR-27050-08X  40  27.0  50.00  45  R
  C5 PWLNL-35060-08X  50  35.0  60.00  48  L
  C5 PWLNR-35060-08X  50  35.0  60.00  48  R
