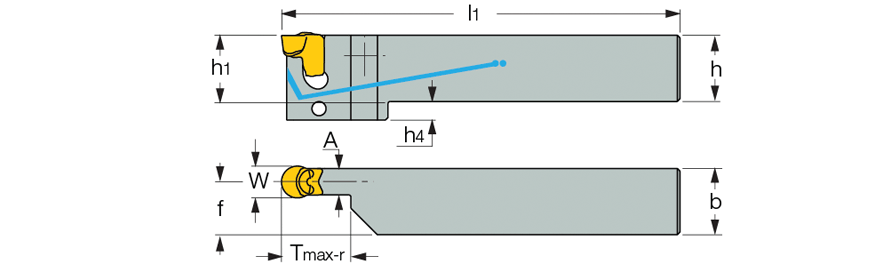

| TGBHR/L : SUMO-GRIP tools with very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life. |
|
|
|
|
|
| Designation |
W |
h |
h1 |
b |
A |
l1 |
Tmax-r |
f |
h4 |
R/L |
|
TGBHL 20C-6
|
6.00 |
20.0 |
20.0 |
20.0 |
5.20 |
135.00 |
12.00 |
17.4 |
5.0 |
L |
|
TGBHR 20C-6
|
6.00 |
20.0 |
20.0 |
20.0 |
5.20 |
135.00 |
12.00 |
17.4 |
5.0 |
R |
|
TGBHL 25C-6
|
6.00 |
25.0 |
25.0 |
25.0 |
5.20 |
135.00 |
12.00 |
22.4 |
- |
L |
|
TGBHR 25C-6
|
6.00 |
25.0 |
25.0 |
25.0 |
5.20 |
135.00 |
12.00 |
22.4 |
- |
R |
|
TGBHL 32C-6
|
6.00 |
32.0 |
32.0 |
32.0 |
5.20 |
150.00 |
12.00 |
29.4 |
- |
L |
|
TGBHR 32C-6
|
6.00 |
32.0 |
32.0 |
32.0 |
5.20 |
150.00 |
12.00 |
29.4 |
- |
R |
|
TGBHL 25C-8
|
8.00 |
25.0 |
25.0 |
25.0 |
7.00 |
150.00 |
25.00 |
21.5 |
12.0 |
L |
|
TGBHR 25C-8
|
8.00 |
25.0 |
25.0 |
25.0 |
7.00 |
150.00 |
25.00 |
21.5 |
12.0 |
R |
|
TGBHL 32C-8
|
8.00 |
32.0 |
32.0 |
32.0 |
7.00 |
170.00 |
30.00 |
28.5 |
5.0 |
L |
|
TGBHR 32C-8
|
8.00 |
32.0 |
32.0 |
32.0 |
7.00 |
170.00 |
30.00 |
28.5 |
5.0 |
R |
|
TGBHL 25C-10
|
10.00 |
25.0 |
25.0 |
25.0 |
8.00 |
150.00 |
25.00 |
21.0 |
12.0 |
L |
|
TGBHR 25C-10
|
10.00 |
25.0 |
25.0 |
25.0 |
8.00 |
150.00 |
25.00 |
21.0 |
12.0 |
R |
|
TGBHL 32C-10
|
10.00 |
32.0 |
32.0 |
32.0 |
8.00 |
170.00 |
30.00 |
28.0 |
5.0 |
L |
|
TGBHR 32C-10
|
10.00 |
32.0 |
32.0 |
32.0 |
8.00 |
170.00 |
30.00 |
28.0 |
5.0 |
R |
|
TGBHL 25C-12
|
12.00 |
25.0 |
25.0 |
25.0 |
10.00 |
150.00 |
25.00 |
20.0 |
12.0 |
L |
|
TGBHR 25C-12
|
12.00 |
25.0 |
25.0 |
25.0 |
10.00 |
150.00 |
25.00 |
20.0 |
12.0 |
R |
|
TGBHL 32C-12
|
12.00 |
32.0 |
32.0 |
32.0 |
10.00 |
170.00 |
30.00 |
27.0 |
5.0 |
L |
|
TGBHR 32C-12
|
12.00 |
32.0 |
32.0 |
32.0 |
10.00 |
170.00 |
30.00 |
27.0 |
5.0 |
R |
|
TGBHL 25C-14T20
|
14.00 |
25.0 |
25.0 |
25.0 |
12.00 |
140.00 |
20.00 |
19.0 |
12.0 |
L |
|
TGBHR 25C-14T20
|
14.00 |
25.0 |
25.0 |
25.0 |
12.00 |
140.00 |
20.00 |
19.0 |
12.0 |
R |
|
TGBHL 32C-14T40
|
14.00 |
32.0 |
32.0 |
32.0 |
12.00 |
170.00 |
40.00 |
26.0 |
5.0 |
L |
|
TGBHR 32C-14T40
|
14.00 |
32.0 |
32.0 |
32.0 |
12.00 |
170.00 |
40.00 |
26.0 |
5.0 |
R |
|
TGBHL 40C-14T40
|
14.00 |
40.0 |
40.0 |
40.0 |
12.00 |
170.00 |
40.00 |
34.0 |
- |
L |
|
TGBHR 40C-14T40
|
14.00 |
40.0 |
40.0 |
40.0 |
12.00 |
170.00 |
40.00 |
34.0 |
- |
R |
|
|
The tools for the 14 mm inserts feature a 1/8" port thread for standard tube fittings.
|
 |
     |
