FF EWX-M-04 :  HELIDO UPFEED endmills with FLEXFIT threaded adaptation, forfast feed, carrying double-sided Inserts with 6 cutting edg es.


Profiling Plunging & recessing Side plunging Ramp down Helical interpolation Facing COOLANT

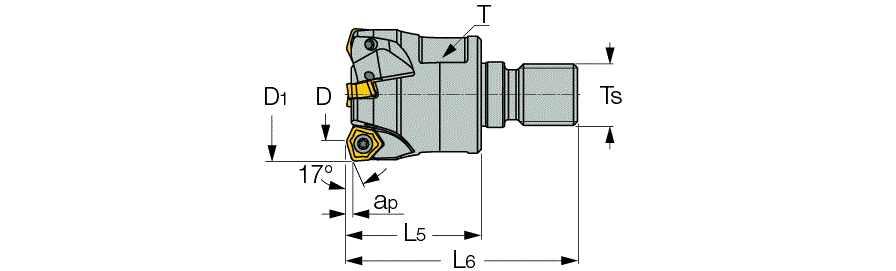

  Designation
D1
D		 ap
(max)
Z
L5
L6
Ts
Rd°
Kg
TClamping wrench size
  FF EWX D20-3-M10-04  20.0  12.60  0.80  3  25.00  45.00  M10  4.8  0.05  15.0
  FF EWX D25-4-M12-04  25.0  17.60  0.80  4  30.00  52.00  M12  3.3  0.09  19.0

apmax=1.5 mm; Insert radius for programming r=1.9 mm
For adaptation click on "More Info"
