A/S-PWLNR/L :

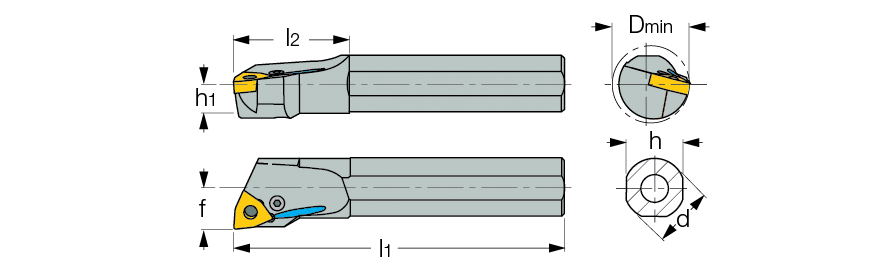

Lever-lock boring bars for double-sided trigon inserts. S - Steel shank; A - Steel shank with coolant hole.
Right-hand shown
Designation
d
l1
l2
h
h1
f
D
min
Ga°
Gr°
Coolant
A16M PWLNL-06
16.00
150.00
27.0
15.0
8.0
11.0
20.00
-6
-14
Y
A16M PWLNR-06
16.00
150.00
27.0
15.0
8.0
11.0
20.00
-6
-14
Y
S16Q PWLNL-06
16.00
180.00
27.0
15.0
8.0
11.0
20.00
-6
-14
N
S16Q PWLNR-06
16.00
180.00
27.0
15.0
8.0
11.0
20.00
-6
-14
N
A20Q PWLNL-06
20.00
180.00
36.0
18.0
9.2
13.0
25.00
-6
-14
Y
A20Q PWLNR-06
20.00
180.00
36.0
18.0
9.2
13.0
25.00
-6
-10
Y
S20R PWLNL-06
20.00
200.00
36.0
18.0
9.0
13.0
27.00
-6
-14
N
S20R PWLNR-06
20.00
200.00
36.0
18.0
9.0
13.0
27.00
-6
-14
N
A25R PWLNL-06
25.00
200.00
35.0
23.0
11.7
17.0
32.00
-6
-14
Y
A25R PWLNR-06
25.00
200.00
35.0
23.0
11.7
17.0
32.00
-6
-14
Y
S25S PWLNL-06
25.00
250.00
40.4
23.0
11.5
17.0
32.00
-6
-14
N
S25S PWLNR-06
25.00
250.00
40.4
23.0
11.5
17.0
32.00
-6
-14
N
A25R PWLNL-08
25.00
200.00
35.0
23.0
11.7
17.0
32.00
-6
-12
Y
A25R PWLNR-08
25.00
200.00
47.5
23.0
11.7
17.0
32.00
-6
-12
Y
S25S PWLNL-08
25.00
250.00
47.0
23.0
11.5
17.0
32.00
-5
-12.5
N
S25S PWLNR-08
25.00
250.00
47.0
23.0
11.5
17.0
32.00
-5
-12.5
N
A32S PWLNL-08
32.00
250.00
50.0
28.0
14.7
22.0
39.00
-6
-12
Y
A32S PWLNR-08
32.00
250.00
50.0
28.0
14.7
22.0
39.00
-6
-12
Y
S32T PWLNL-08
32.00
300.00
50.0
29.0
14.5
22.0
39.00
-6
-12
N
S32T PWLNR-08
32.00
300.00
50.0
29.0
14.5
22.0
39.00
-6
-12
N
S40U PWLNL-08
40.00
350.00
59.0
36.0
18.0
27.0
49.00
-6
10
N
S40U PWLNR-08
40.00
350.00
59.0
36.0
18.0
27.0
49.00
-6
10
N
