APKT 1003...TR-RM :  HELIMILL inserts with different corner radii and a reinforced cutting edge for interrupted cut and heavy machining.


Countersinking Drill mill Facing Plunging & recessing Ramp down Shouldering Slanted shoulder. & chamfer. Slotting

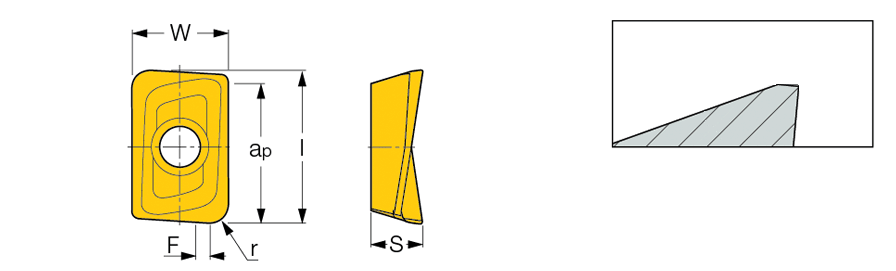

  Designation
r
l
W
ap
S
F		 fz
(min)		 fz
(max)
  Grade
  APKT 100308PDTR-RM  0.80  11.00  6.70  9.90  3.47  0.90  0.08  0.15 IC28 IC330 IC328 IC928 IC50M IC250 IC950 IC910 IC520M
  APKT 100310PDR-RM  1.00  10.75  6.70  9.90  3.47  0.60  0.08  0.15 IC28 IC328
  APKT 100312TR-RM  1.20  10.50  6.70  9.85  3.47  -  0.08  0.15 IC28 IC328 IC928 IC250 IC950 IC910 IC520M
  APKT 100316PDTR-RM  1.60  10.90  6.70  9.78  3.47  0.80  0.08  0.15 IC28 IC328 IC928 IC250 IC950
  APKT 100320PDTR-RM  2.00  10.90  6.70  9.75  3.47  0.80  0.08  0.15 IC328 IC928 IC250 IC950
  APKT 100332TR-RM  3.20  10.70  6.70  9.65  3.47  -  0.08  0.15 IC28 IC328 IC928 IC250 IC950
  APKT 100340TR-RM  4.00  10.55  6.70  9.60  3.47  -  0.10  0.20 IC28 IC328
