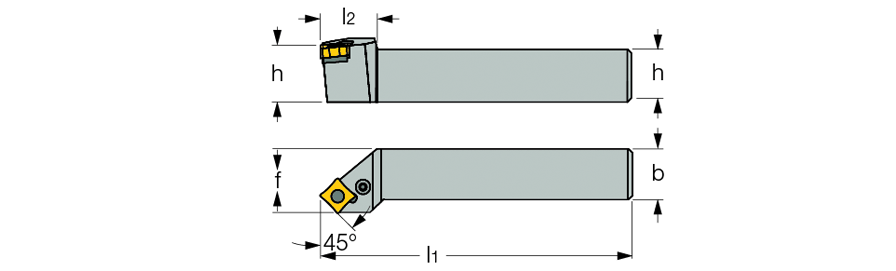

PQSNR/L :  External 45° lead toolholders for negative inserts with four 80° corners.
 Right-hand shown

Ext. 90°square face&turn 45°ap
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  PQSNL 2525M-12  25.0  25.0  150.00  30.0  32.0  -4.5  -5.5  L
  PQSNR 2525M-12  25.0  25.0  150.00  30.0  32.0  -4.5  -5.5  R
