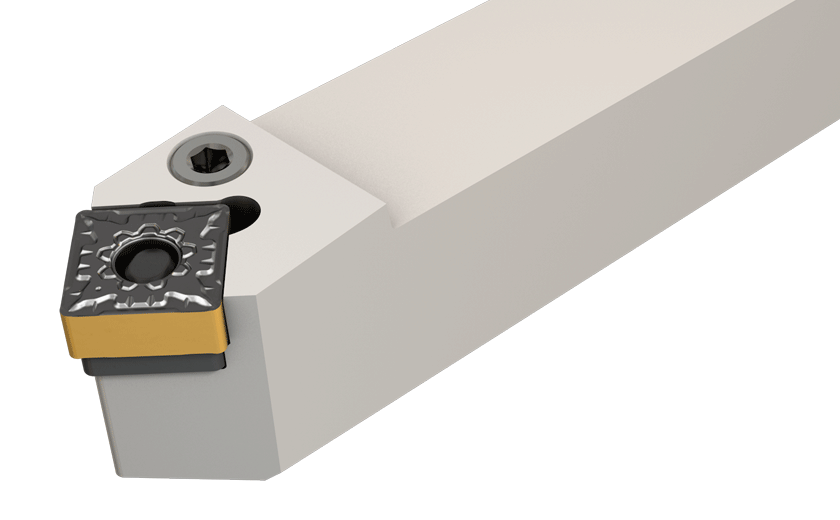

PSDNN :  45° lead angle lever lock external turning tools for ISO negative SNMG inserts.


Ext. 90° square 45° approach

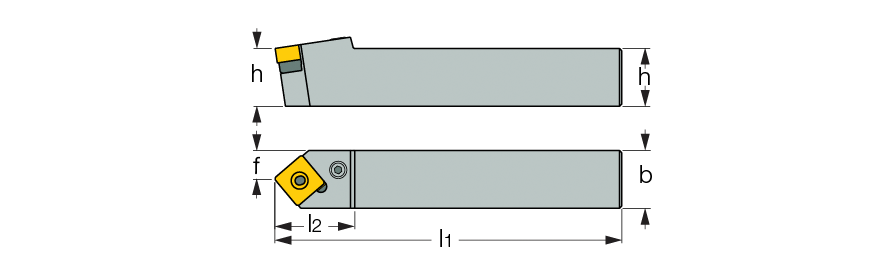

  Designation
h
b
l1
l2
f
Ga°
Gr°
  PSDNN 2020K-12  20.0  20.0  125.00  27.0  10.0  0  -7
  PSDNN 2525M-12  25.0  25.0  150.00  27.0  12.5  0  -7
  PSDNN 3225P-19  32.0  25.0  170.00  41.0  13.0  0  -8.5
  PSDNN 3232P-19  32.0  32.0  170.00  41.0  16.0  0  -8.5
  PSDNN 4040S-25  40.0  40.0  250.00  49.0  20.0  0  -8.5
