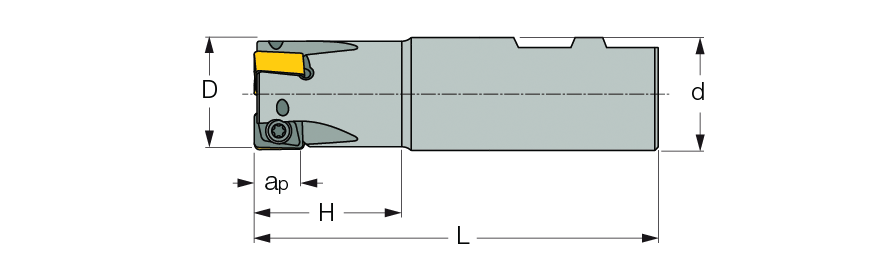

H490 E90AX-09 :  90° endmills using H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line).


Shouldering Slotting Side plunging Facing COOLANT
  Designation
D
Z
ap
L
H
d
ShankC-Cylindrical, W-Weldon
Lbs
  H490 E90AX D.62-2-W.62-09  .625  2  .315  3.250  1.000  .625  W  .227
  H490 E90AXD.62-2-C.62-09B  .625  2  .315  6.000  1.500  .625  C  .450
  H490 E90AX D.75-2-W.75-09  .750  2  .315  3.380  1.000  .750  W  .340
  H490 E90AXD.75-2-C.75-09B  .750  2  .315  6.000  1.570  .750  C  .626
  H490 E90AX D.75-3-W.75-09  .750  3  .315  3.380  1.000  .750  W  .340
  H490 E90AX D1.0-3-W.75-09  1.000  3  .315  3.380  1.240  .750  W  .441
  H490 E90AXD1.0-3-C1.0-09B  1.000  3  .315  7.870  1.570  1.000  C  1.499
  H490 E90AX D1.0-4-W.75-09  1.000  4  .315  3.380  1.240  .750  W  .384
  H490 E90AX D1.25-4W1.0-09  1.250  4  .315  4.000  1.480  1.000  W  .796
  H490 E90AXD1.25-4C1.25-9B  1.250  4  .315  7.870  1.570  1.250  C  2.445
  H490 E90AX D1.25-5W1.0-09  1.250  5  .315  4.000  1.480  1.000  W  .794
  H490 E90AX D1.50-5W1.0-09  1.500  5  .315  4.000  1.520  1.000  W  .875
  H490 E90AX D1.50-6W1.0-09  1.500  6  .315  4.000  1.520  1.000  W  1.764

For adaptation, click on "More Info"
"B" Suffix cylindrical shank which may be shortened
