FTP-LN10 :  HELITANG, fast feed shell mill, carrying tangentially clamped inserts with 4 cutting edges. 3 mm maximum face milling D.O.C. and 8 mm side plunging capacity. Provide excellent side wall surface finish and a flat bottom.


Facing Profiling Ramp down Side plunging COOLANT
  Designation

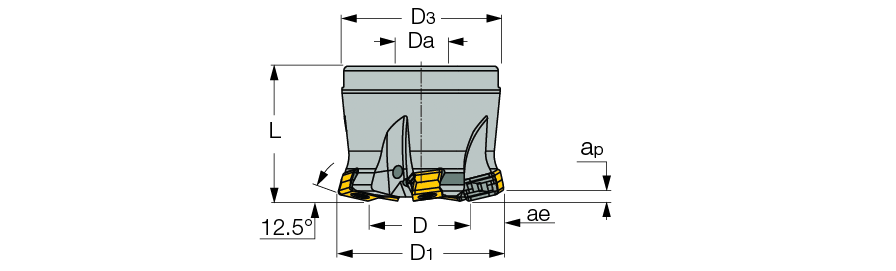

D1
D
ae		 ap
(max)
Z
L
Da
ArborFor adaptation click on More Info
D3
Rd°Valid only when FTP LNHT 1006... inserts are used.
Kg
  FTP D040-4-16-R-LN10  40.0  22.00  8.0  1.80  4  40.00  16.00  A  38.00  2.0  0.20
  FTP D050-5-22-R-LN10  50.0  32.00  8.0  1.80  5  40.00  22.00  A  47.00  1.4  0.32
  FTP D052-5-22-R-LN10  52.0  34.00  8.0  1.80  5  40.00  22.00  A  47.00  1.4  0.34
  FTP D063-6-27-R-LN10  63.0  45.00  8.0  1.80  6  50.00  27.00  A  59.00  1.0  0.70

For applications details click on "More Info"
Radius for programming R=3.4 mm
