PCHPR/L :  Perpendicular PENTACUT holders for 5 edged inserts, used for facing, grooving, parting and recessing.

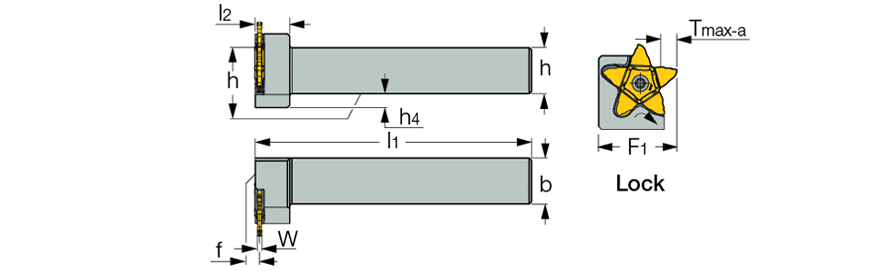

 Right-hand shown

Ext. Grooving Parting Face Grooving
  Designation
h
b		 W
min		 W
max
f
F1
l1
l2
h4
R/L
Tmax-aFor specific information, refer to insert data.
  PCHPL 16-24  16.0  16.0  0.50  3.20Up to 6.2 mm width may be ordered on request.  1.5Valid for inserts with W<3.2 mm  23.5  120.00  11.5  -  L  6.50
  PCHPR 16-24  16.0  16.0  0.50  3.20Up to 6.2 mm width may be ordered on request.  1.5Valid for inserts with W<3.2 mm  23.5  120.00  11.5  -  R  6.50
  PCHPL 20-24  20.0  20.0  0.50  3.20Up to 6.2 mm width may be ordered on request.  1.5Valid for inserts with W<3.2 mm  28.0  120.00  11.5  -  L  6.50
  PCHPR 20-24  20.0  20.0  0.50  3.20Up to 6.2 mm width may be ordered on request.  1.5Valid for inserts with W<3.2 mm  28.0  120.00  11.5  -  R  6.50
  PCHPL 25-24  25.0  25.0  0.50  3.20Up to 6.2 mm width may be ordered on request.  1.5Valid for inserts with W<3.2 mm  33.0  135.00  11.5  -  L  6.50
  PCHPR 25-24  25.0  25.0  0.50  3.20Up to 6.2 mm width may be ordered on request.  1.5Valid for inserts with W<3.2 mm  33.0  135.00  11.5  -  R  6.50
  PCHPL 20-34  20.0  20.0  1.40  4.00  1.9  34.0  120.00  15.0  6.0  L  10.00
  PCHPR 20-34  20.0  20.0  1.40  4.00  1.9  34.0  120.00  15.0  6.0  R  10.00
  PCHPL 25-34  25.0  25.0  1.40  4.00  1.9  34.0  135.00  15.0  -  L  10.00
  PCHPR 25-34  25.0  25.0  1.40  4.00  1.9  34.0  135.00  15.0  -  R  10.00
