TS FF EWX :  HELIDO UPFEED fast feed milling heads with SHANK-MASTER threaded adaptation, carrying double-sided inserts with 6 cutting edges.


Plunging & recessing Side plunging Ramp down Helical interpolation Facing COOLANT

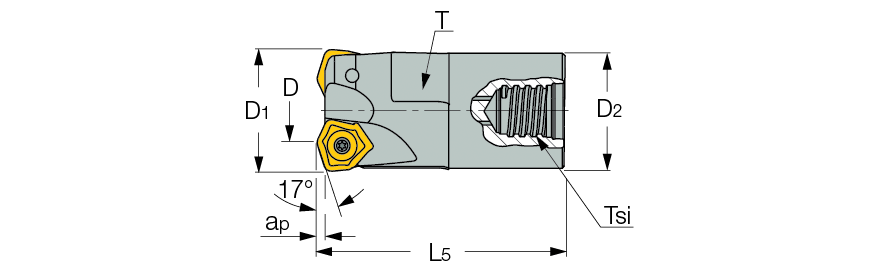

  Designation
D1
D
Z
D2
L5
TClamping wrench size
Tsi		 ap
(max)
Kg
Rd°
  TS FF EWX D16-2-T10-04  16.0  8.60  2  15.20  32.00  12.0  T10  0.80  0.03  5.0
  TS FF EWX D20-3-T12-04  20.0  12.60  3  18.50  40.00  15.0  T12  0.80  0.06  4.8
