C#-PWLNR/L-08X-JHP :  Lever lock toolholders for HELITURN LD WNMX-HTW trigon inserts, with CAMFIX exchangeable heads and channels for high pressure coolant.


Ext. 80° trigon 95 approach 300 BAR (4350 PSI) MAX.

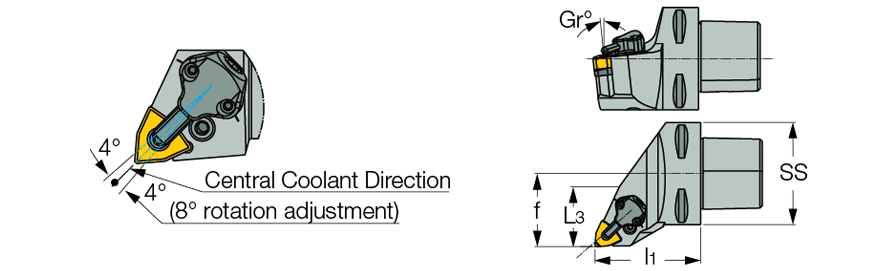

  Designation
SS
l1
f
L3
Ga°Ga° - Axial inclination
Gr°
R/L
  C6 PWLNL-45065-08X-JHP  63  2.559  1.77  1.457  -6  -6  L
  C6 PWLNR-45065-08X-JHP  63  2.559  1.77  1.457  -6  -6  R

For more details click on "More Info"
