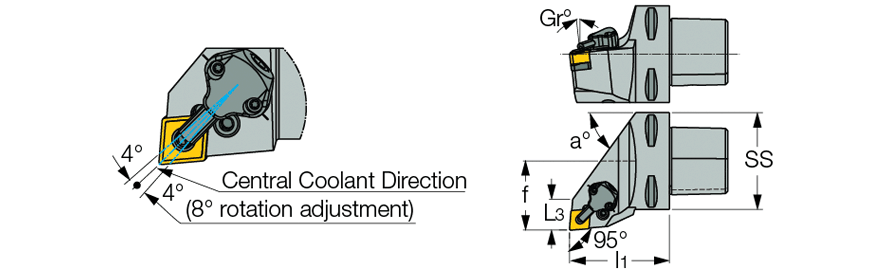

C#-PCLNR/L-12X-JHP :  Lever lock toolholders for HELITURN LD CNMX-HTW negative 80° rhombic inserts, with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and with channels for high pressure coolant.


Ext. 80° diamond 95° approach ISO 26623-1 (CAMFIX) 300 BAR (4350 PSI) MAX.
  Designation
SS
f
l1
L3
a°
Ga°
Gr°
  C6 PCLNL-45065-12X-JHP  63  45.0  65.00  20.00  54  -6  -6
  C6 PCLNR-45065-12X-JHP  63  45.0  65.00  20.00  54  -6  -6

Important: These tools were desingned to be used only with the HELITURNLD inserts.
