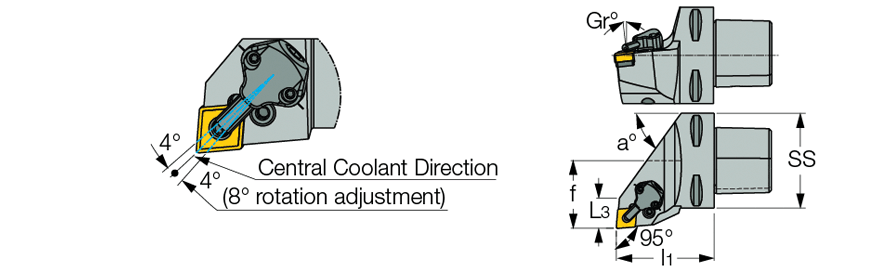

C#-PCLNR/L-12-JHP :  Lever lock toolholders for CNMG, 80° negative rhombic inserts with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks and with Channels for high pressure coolant.


Ext. 80° diamond 95° approach ISO 26623-1 (CAMFIX) 300 BAR (4350 PSI) MAX.
  Designation
SS
f
l1
R/L
L3
a°
Ga°Ga° - Axial inclination
Gr°
  C6 PCLNL-45065-12-JHP  63  1.77  2.559  L  .787  54  -6  -6
  C6 PCLNR-45065-12-JHP  63  1.77  2.559  R  .787  54  -6  -6
