A/E/S-SCLCR/L :

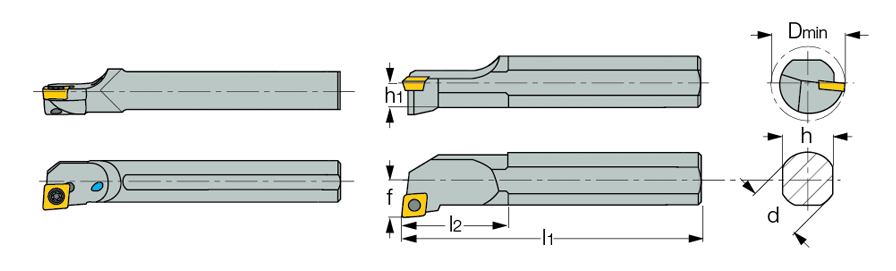

Screw lock boring bars for 80° rhombic inserts with 7° clearance.
Right-hand shown
Designation
d
l1
l2
h
h1
f
D
min
Shank
m.
Coolant
Ga°
Gr°
R/L
S08K SCLCL-06
8.00
125.00
12.0
8.0
3.8
5.0
10.50
S
-
0
-11
L
S08K SCLCR-06
8.00
125.00
12.0
8.0
3.8
5.0
10.50
S
-
0
-11
R
S10L SCLCL-06
10.00
140.00
19.0
10.0
4.6
7.0
13.00
S
-
0
-7
L
S10L SCLCR-06
10.00
140.00
19.0
10.0
4.6
7.0
13.00
S
-
0
-7
R
S12M SCLCL-06
12.00
150.00
12.0
12.0
5.5
9.0
16.00
S
-
0
-9
L
S12M SCLCR-06
12.00
150.00
12.0
12.0
5.5
9.0
16.00
S
-
0
-9
R
S16Q SCLCL-09
16.00
180.00
45.0
15.0
7.5
11.0
20.00
S
-
0
-6
L
S16Q SCLCR-09
16.00
180.00
45.0
15.0
7.5
11.0
20.00
S
-
0
-6
R
S20R SCLCL-09
20.00
200.00
50.0
18.0
9.0
13.0
25.00
S
-
0
-4
L
S20R SCLCR-09
20.00
200.00
50.0
18.0
9.0
13.0
25.00
S
-
0
-4
R
S25S SCLCL-09
25.00
250.00
55.0
23.0
11.5
17.0
35.00
S
-
0
-4
L
S25S SCLCR-09
25.00
250.00
55.0
23.0
11.5
17.0
35.00
S
-
0
-4
R
A20R SCLCL-09
20.00
200.00
50.0
18.0
9.0
13.0
25.00
S
Y
0
-4
L
A20R SCLCR-09
20.00
200.00
50.0
18.0
9.0
13.0
25.00
S
Y
0
-4
R
A25S SCLCL-09
25.00
250.00
55.0
23.0
11.5
17.0
35.00
S
Y
0
-4
L
A25S SCLCR-09
25.00
250.00
55.0
23.0
11.5
17.0
35.00
S
Y
0
-4
R
E08K SCLCL-06
8.00
125.00
-
7.6
3.8
5.0
10.00
C
Y
3
-11
L
E08K SCLCR-06
8.00
125.00
-
7.6
3.8
5.0
10.00
C
Y
3
-11
R
E10M SCLCL-06
10.00
150.00
-
9.2
4.6
7.0
14.00
C
Y
3
-7
L
E10M SCLCR-06
10.00
150.00
-
9.2
4.6
7.0
14.00
C
Y
3
-7
R
E12P SCLCL-06
12.00
170.00
-
11.0
5.5
9.0
16.00
C
Y
0
-7
L
E12P SCLCR-06
12.00
170.00
-
11.0
5.5
9.0
16.00
C
Y
0
-7
R
E16R SCLCL-06
16.00
200.00
-
14.0
7.0
11.0
20.00
C
Y
0
-12
L
E16R SCLCR-06
16.00
200.00
-
14.0
7.0
11.0
20.00
C
Y
0
-12
R
E16R SCLCL-09
16.00
200.00
-
15.0
7.5
11.0
20.00
C
Y
0
-6
L
E16R SCLCR-09
16.00
200.00
-
15.0
7.5
11.0
20.00
C
Y
0
-6
R
S - steel shank, A - steel shank with coolant hole, E - carbide shank and coolant hole
