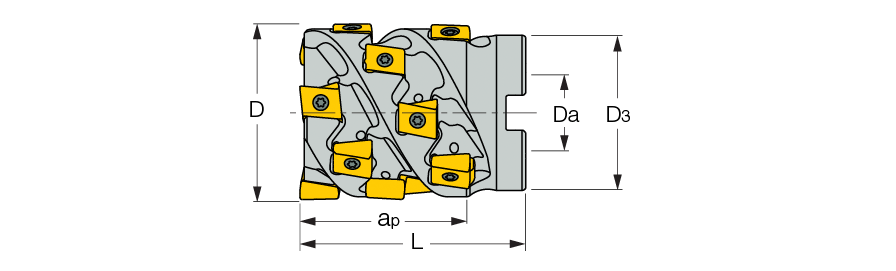

T490 SM-13FT :  Basic units for modular extended flute shell mills with T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line).


Shouldering Slotting COOLANT
  Designation
D
ap
Flute
Z
L
Da
ArborFor adaptation, click on More Info.
D3
Kg
  T490 SM-D50-47-2-27-13FT  50.00  47.00  2  8  66.50  27.00  A  58.00  0.59
  T490 SM-D63-59-3-27-13FT  63.00  59.00  3  15  80.00  27.00  A  58.00  1.07
