SGTFR/L :

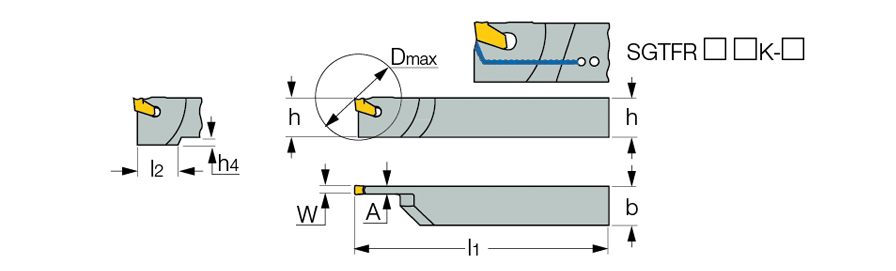

SELF-GRIP integral shank tool for parting & grooving.
Right-hand shown
Left-hand shown
Designation
h
W
min
W
max
D
max
b
A
l1
l2
h4
R/L
SGTFL 1010-1.6
10.0
1.60
1.60
28.0
10.0
1.20
86.00
15.0
4.0
L
SGTFR 1010-1.6
10.0
1.60
1.60
28.0
10.0
1.20
86.00
15.0
4.0
R
SGTFL 1010-2
10.0
1.80
2.69
28.0
10.0
1.60
86.00
17.0
6.0
L
SGTFR 1010-2
10.0
1.80
2.69
28.0
10.0
1.60
86.00
17.0
6.0
R
SGTFL 1212-1.6
12.0
1.60
1.60
30.0
12.0
1.20
110.00
-
-
L
SGTFR 1212-1.6
12.0
1.60
1.60
30.0
12.0
1.20
110.00
-
-
R
SGTFL 1212-2
12.0
1.80
2.69
32.0
12.0
1.60
110.00
19.0
4.0
L
SGTFR 1212-2
12.0
1.80
2.69
32.0
12.0
1.60
110.00
19.0
4.0
R
SGTFL 1212-3
12.0
2.70
3.53
32.0
12.0
2.40
110.00
19.0
6.0
L
SGTFR 1212-3
12.0
2.70
3.53
32.0
12.0
2.40
110.00
19.0
6.0
R
SGTFL 1612-3
16.0
2.70
3.53
35.0
12.0
2.40
110.00
17.0
4.0
L
SGTFR 1612-3
16.0
2.70
3.53
35.0
12.0
2.40
110.00
17.0
4.0
R
SGTFL 1612-4
16.0
3.54
4.52
35.0
12.0
3.20
110.00
17.0
4.0
L
SGTFR 1612-4
16.0
3.54
4.52
35.0
12.0
3.20
110.00
17.0
4.0
R
SGTFL 2012-2
20.0
1.80
2.69
35.0
12.0
1.60
110.00
-
-
L
SGTFR 2012-2
20.0
1.80
2.69
35.0
12.0
1.60
110.00
-
-
R
SGTFL 2012-3
20.0
2.70
3.53
40.0
12.0
2.40
110.00
-
-
L
SGTFL 2020-3
20.0
2.70
3.53
52.0
20.0
2.40
120.00
-
-
L
SGTFL 2020K-3
20.0
2.70
3.53
52.0
20.0
2.40
120.00
-
-
L
SGTFR 2012-3
20.0
2.70
3.53
40.0
12.0
2.40
110.00
-
-
R
SGTFR 2020-3
20.0
2.70
3.53
52.0
20.0
2.40
120.00
-
-
R
SGTFR 2020K-3
20.0
2.70
3.53
52.0
20.0
2.40
120.00
-
-
R
SGTFL 2012-4
20.0
3.54
4.52
42.0
12.0
3.20
110.00
-
-
L
SGTFL 2020-4
20.0
3.54
4.52
57.0
20.0
3.20
120.00
-
-
L
SGTFL 2020K-4
20.0
3.54
4.52
57.0
20.0
3.20
120.00
-
-
L
SGTFR 2012-4
20.0
3.54
4.52
42.0
12.0
3.20
110.00
-
-
R
SGTFR 2020-4
20.0
3.54
4.52
57.0
20.0
3.20
120.00
-
-
R
SGTFL 2020-5
20.0
4.53
5.50
57.0
20.0
4.00
120.00
-
-
L
SGTFR 2012-5
20.0
4.53
5.50
42.0
12.0
4.00
110.00
-
-
R
SGTFR 2020-5
20.0
4.53
5.50
57.0
20.0
4.00
120.00
-
-
R
SGTFL 2525-3
25.0
2.70
3.53
56.0
25.0
2.40
150.00
-
-
L
SGTFR 2525-3
25.0
2.70
3.53
56.0
25.0
2.40
150.00
-
-
R
SGTFR 2525K-3
25.0
2.70
3.53
56.0
25.0
2.40
150.00
-
-
R
SGTFL 2525-4
25.0
3.54
4.52
65.0
25.0
3.20
150.00
-
-
L
SGTFR 2525-4
25.0
3.54
4.52
65.0
25.0
3.20
150.00
-
-
R
SGTFL 2525-5
25.0
4.53
5.50
76.0
25.0
4.00
150.00
-
-
L
SGTFR 2525-5
25.0
4.53
5.50
76.0
25.0
4.00
150.00
-
-
R
SGTFL 2525-6
25.0
5.51
6.50
76.0
25.0
5.20
150.00
-
-
L
SGTFR 2525-6
25.0
5.51
6.50
76.0
25.0
5.20
150.00
-
-
R
SGTFR 3225-3
32.0
2.70
3.53
56.0
25.0
2.40
170.00
-
-
R
SGTFR 3225-4
32.0
3.54
4.52
70.0
25.0
3.20
170.00
-
-
R
SGTFR 3225-6
32.0
5.51
6.50
80.0
25.0
5.20
170.00
-
-
R
