STFCR/L :  Screw lock toolholders for triangular inserts with 7° clearance angle. Used for face turning.

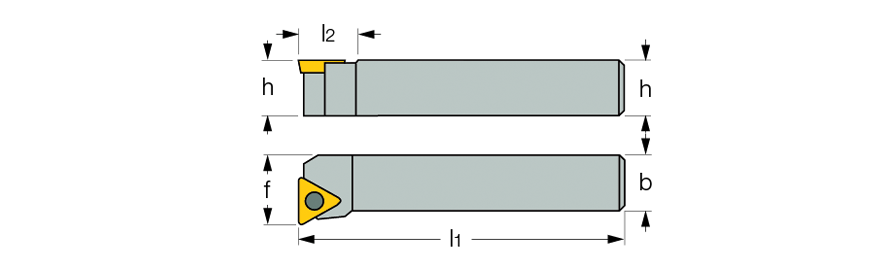

 Right-hand shown

Ext. 60° triangle facing
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  STFCL 1212F-11  12.0  12.0  80.00  13.0  16.0  0  0  L
  STFCR 1212F-11  12.0  12.0  80.00  13.0  16.0  0  0  R
  STFCL 2020K-16  20.0  20.0  125.00  18.0  25.0  0  0  L
  STFCR 2020K-16  20.0  20.0  125.00  18.0  25.0  0  0  R
  STFCL 2525M-16  25.0  25.0  150.00  20.0  32.0  0  0  L
  STFCR 2525M-16  25.0  25.0  150.00  20.0  32.0  0  0  R
