MTENN-W :  Neutral wedge lock toolholders for negative triangular inserts.


Ext. 60° triangle 60° approach

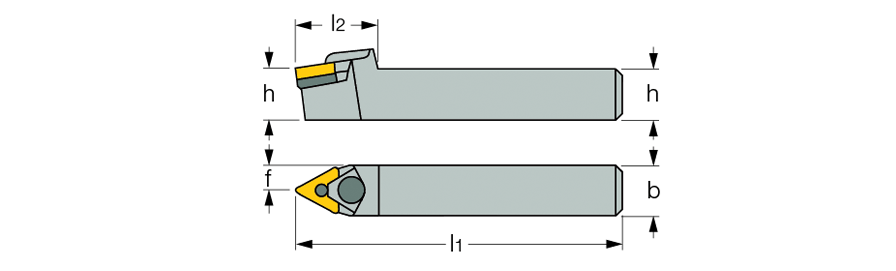

  Designation
h
b
l1
l2
f
Ga°
Gr°
  MTENN 12-3W-M  .750  .750  4.500  1.37  .38  0  -8
  MTENN 16-3W-M  1.000  1.000  6.000  1.37  .50  0  -8
