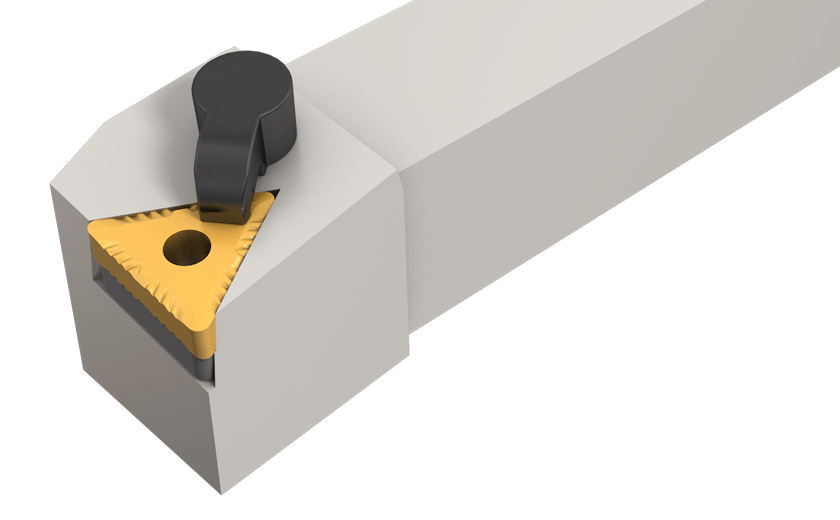

MTFNR/L :  Comlock holders for facing with negative triangular inserts.


Ext. 60° triangle facing
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  MTFNL 12-3  .750  .750  4.500  .88  1.00  -6  -6  L
  MTFNR 12-3  .750  .750  4.500  .88  1.00  -6  -6  R
  MTFNL 16-4  1.000  1.000  6.000  1.22  1.25  -6  -6  L
