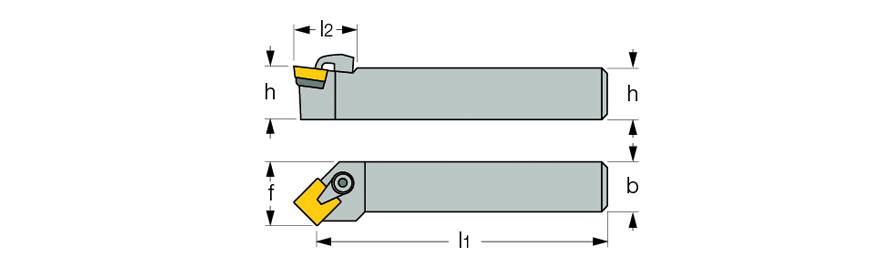

CSSPR/L :  Clamp lock toolholders for 11° clearance square inserts, for, longitudinal and face turning.
 Right-hand shown

Ext. 90°square face&turn 45°ap
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  CSSPR 1212F-09  12.0  12.0  80.00  21.0  16.0  0  6  R
  CSSPR 1616H-12  16.0  16.0  100.00  26.0  20.0  0  6  R
  CSSPR 2020K-12  20.0  20.0  125.00  26.0  25.0  0  6  R
  CSSPL 2525M-12  25.0  25.0  150.00  28.0  32.0  0  6  L
  CSSPR 2525M-12  25.0  25.0  150.00  28.0  32.0  0  6  R
