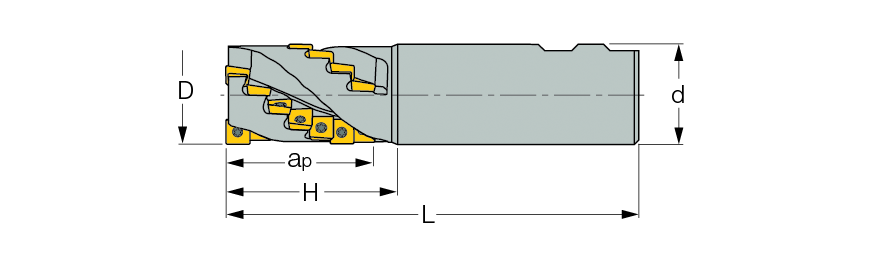

XOK :  Extended flute endmills with S/Q/XOMT-06.. inserts.


Ramp down Shouldering Slotting
  Designation
D
Z
Flute
ap
H
L
d
Rd°
Lbs
  XOK D.62-.88-W.62-06  .620  5  1  .870  1.060  3.000  .625  3.5  .214

For adaptation, click on "More Info".
