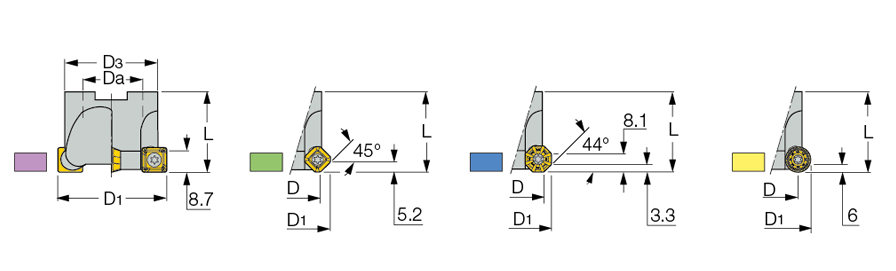

FCM :  CHAMMILL, multi-functional face mills for four different insert contours.


Facing Shouldering Profiling Slanted shoulder. & chamfer. Slotting Ramp down
  Designation
D1Click on More Info for specific insert value
Z
L
Rd°
ap
Da
ArborFor adaptation click on More Info
Kg
  FCM D050-22-11  -  5  40.00  3.9  8.70  22.00  A  0.30
  FCM D063-22-11  -  6  40.00  2.7  8.70  22.00  A  0.43
  FCM D080-27-11  -  7  50.00  1.9  8.70  27.00  B  0.77
  FCM D100-32-11  -  8  50.00  1.4  8.70  32.00  B  1.33
  FCM D125-40-11  -  9  60.00  1.1  8.70  40.00  B  2.46

The displayed data refers to S90MT inserts. For other combinations see "More Info".
