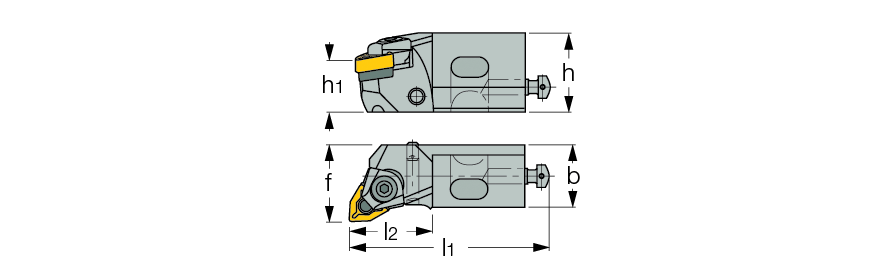

MWLNR/L-CA-W :  Top wedge lock cartridges for trigon inserts.
 Right-hand shown

Ext. 80° trigon 95 approach Int. 80° trigon 95° approach
  Designation
l1
l2
b
h
h1
f
Ga°
Gr°
R/L
  MWLNL 16CA-06W  63.00  26.4  20.0  25.0  16.0  25.0  -8  -8  L
  MWLNR 16CA-06W  63.00  26.4  20.0  25.0  16.0  25.0  -8  -8  R
