3M AXK-13 :  MILL2000, Heavy duty, extended flute endmills carrying 3M AXKT 1304... inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable a secure clamping and high durability in rough applications.


Shouldering Slotting

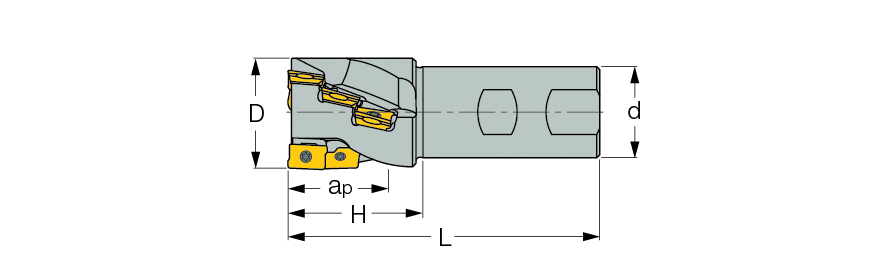

  Designation
D
ap
Flute
Z
H
L
d
Lbs
  3M AXK D1.00-10-2-W100-13  1.000  .960  2  4  1.380  4.000  1.000  .750
  3M AXK D1.25-14-2-W125-13  1.250  1.440  2  6  2.000  4.300  1.250  1.400
  3M AXK D1.25-14-3-W125-13  1.250  1.440  3  9  2.000  4.300  1.250  1.142
  3M AXK D1.50-14-3-W125-13  1.500  1.440  3  9  1.770  4.300  1.250  1.654
  3M AXK D1.50-19-4-W125-13  1.500  1.900  4  16  2.200  4.700  1.250  1.462
  3M AXK D2.00-23-5-W150-13  2.000  2.380  5  25  2.600  5.600  1.500  3.175

For adaptation click on "More Info"
Reduce feed by 50% during engagement and exit from the workpiece. This practice will substantially increase insert life.
